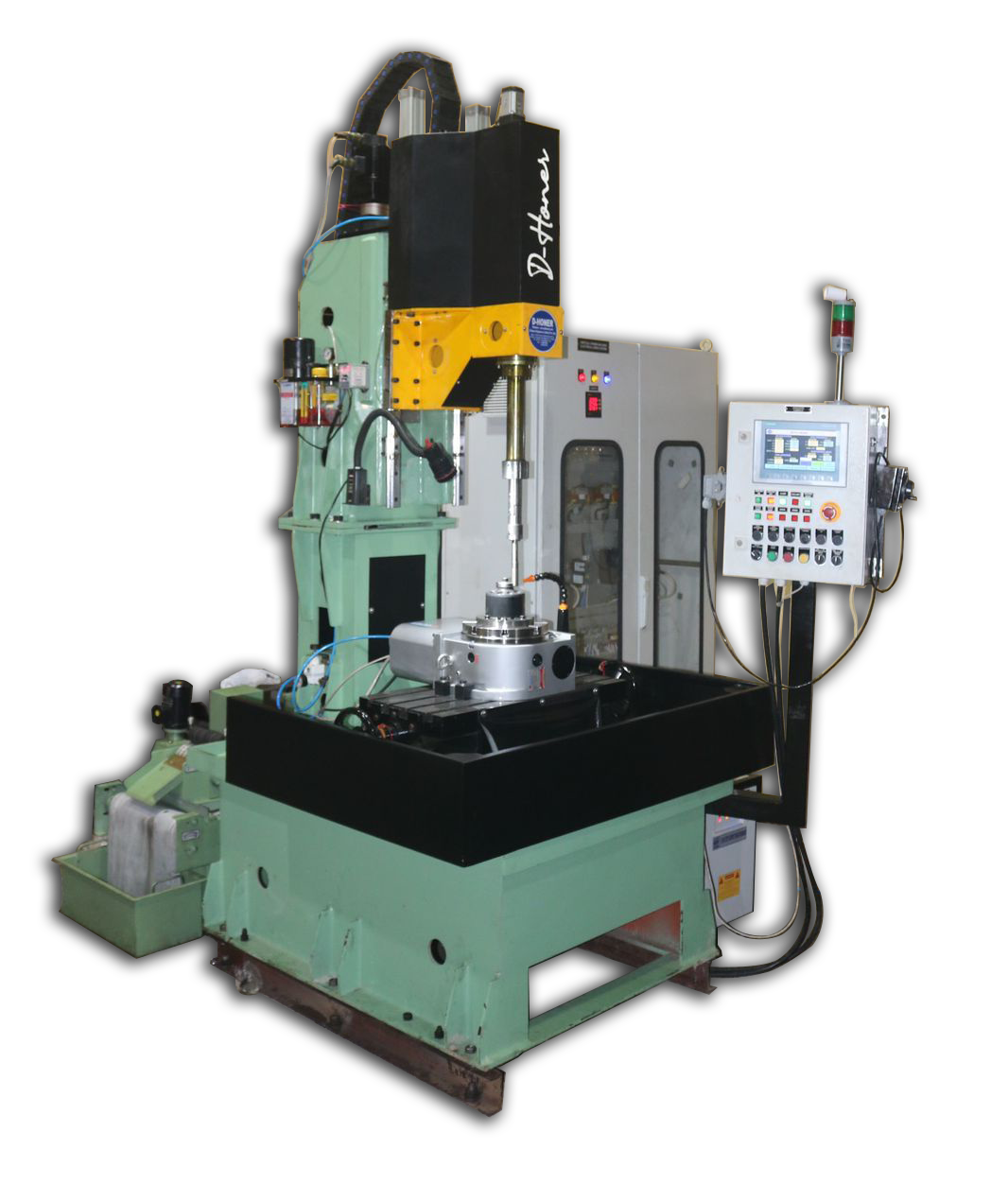

D-Honer, Model : DSCHM – 50x300mm is fully Servo Controlled Honing Machine. Machine works on
Servo Motors such as reciprocation on Heavy rolled Ball screw driven by servo motor. Tool Expansion
is micron by Servo motor. Rotation by servo motor and job clamping on ‘U Cam’ Rotary servo
indexing table. Machine is designed for small diam. 10mm to 50 mm. High accuracy servo tool
expansion in micron is to control same size of each bore. Multiple bore can be done on this machine.
Machine is fully programmed with advance technology and accuracy at another high level.

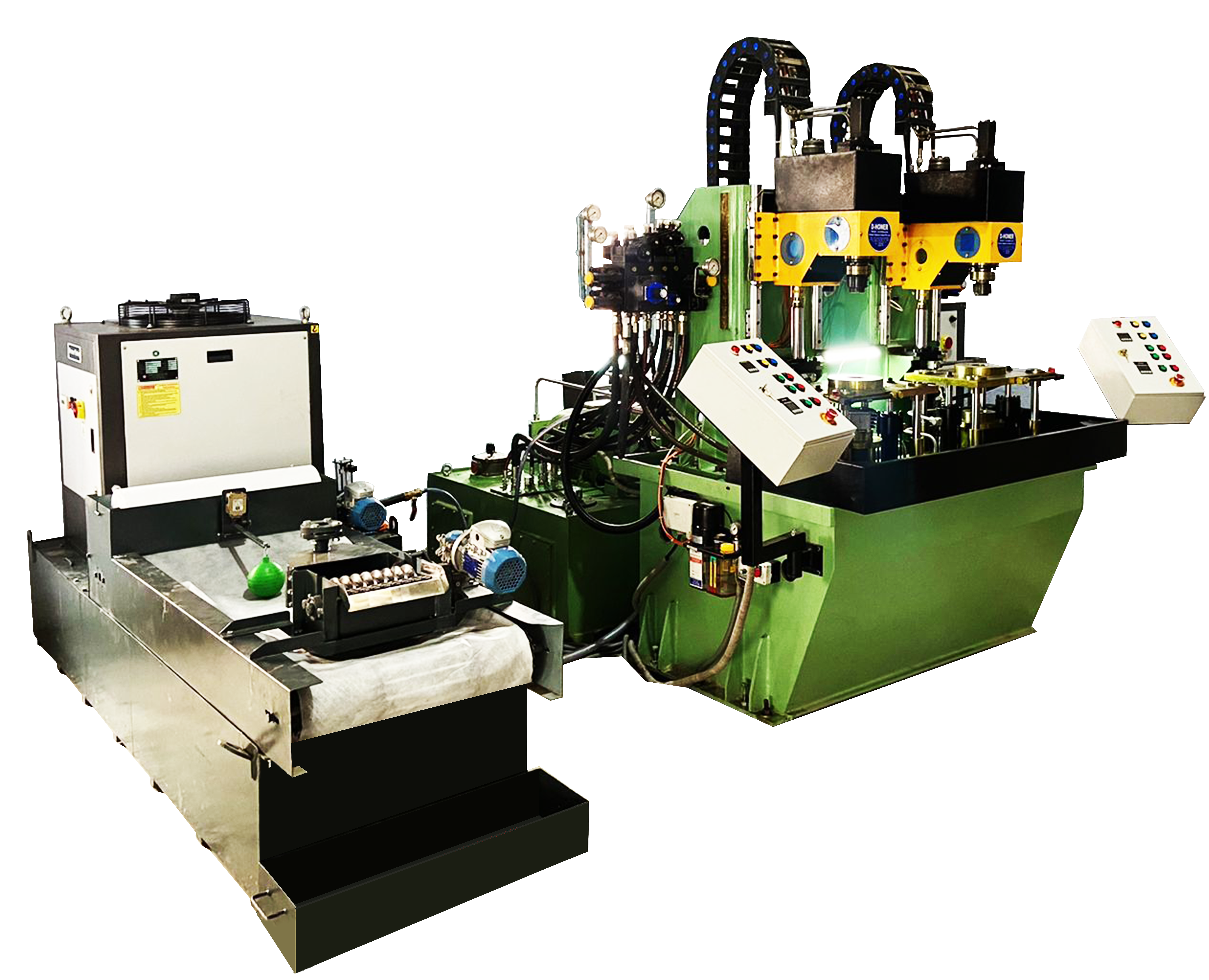

Double Spindle High Productive Honing Machine
Description
D-Honer, Model : 100x200 mm stroke is fully automatic double spindle honing machine. This machine
is specially designed for automobile industries; where production and accuracy is important. Engine
Blocks of two wheelers and auto rickshaws are done. Machine comes with high speed reciprocation,
constant cutting pressure on hydraulic expansion cylinders and variable RPM speed. To control
speed on reciprocation and RPM hatch pattern are made in honing process for lubrication of oil inside
the engine blocks. Machine is high speed and having highly production rate per day. The machine id
fully equipped with tooling, filtration unit and chilling unit.

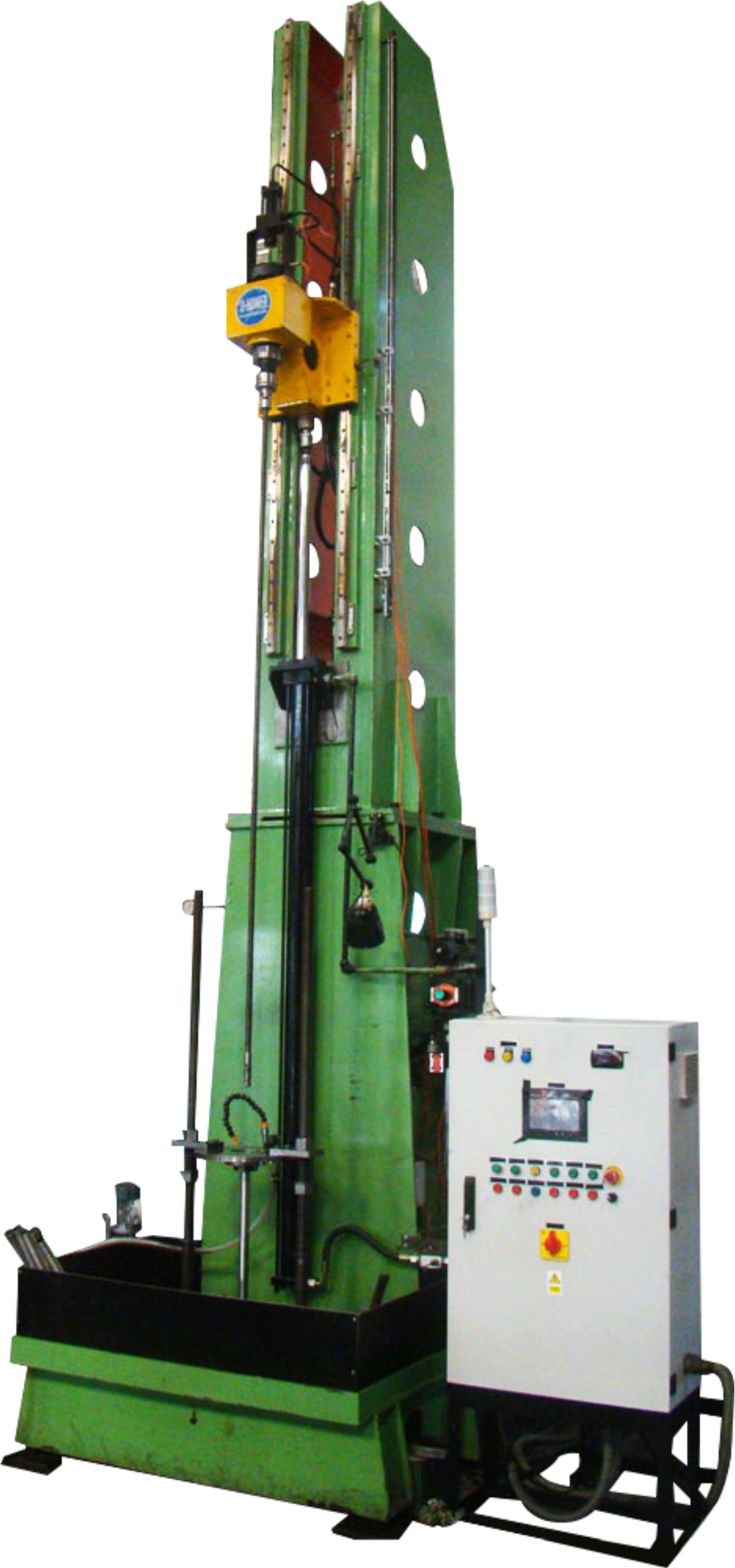

Extra Long Vertical Honing Machine
Description
Dhoner, Model : DELVHM -200x2500 mm is Extra Long Vertical Honing Machine. This machine s for
2.5 mtr long S.S. Pipe. Extra-long Vertical Honing is useful for Job works which give wide range for
different length with high production rate and accuracy.

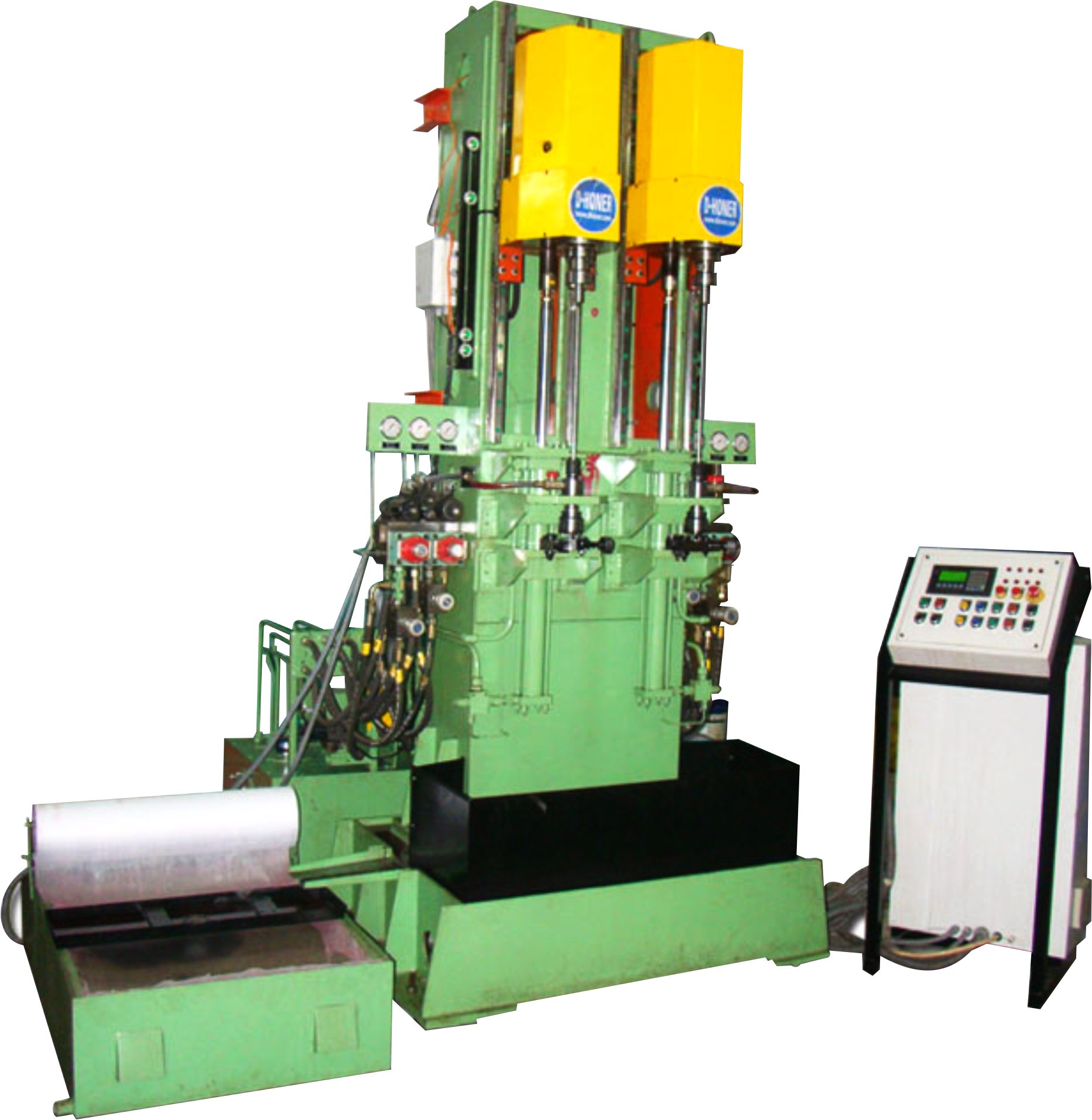

Double Spindle Gun Barrel Honing Machine
Description
Dhoner, Model : DDSGB – 50x500 mm stroke is double spindle gun barrel honing machine. This
machine is specially designed for Gun Barrel Bore range from 10 mm to 50 mm Dia. So, crafting of
this machine is very precisely done with accuracy. This is higher accuracy machine with precision
honing done with two statins for more production.

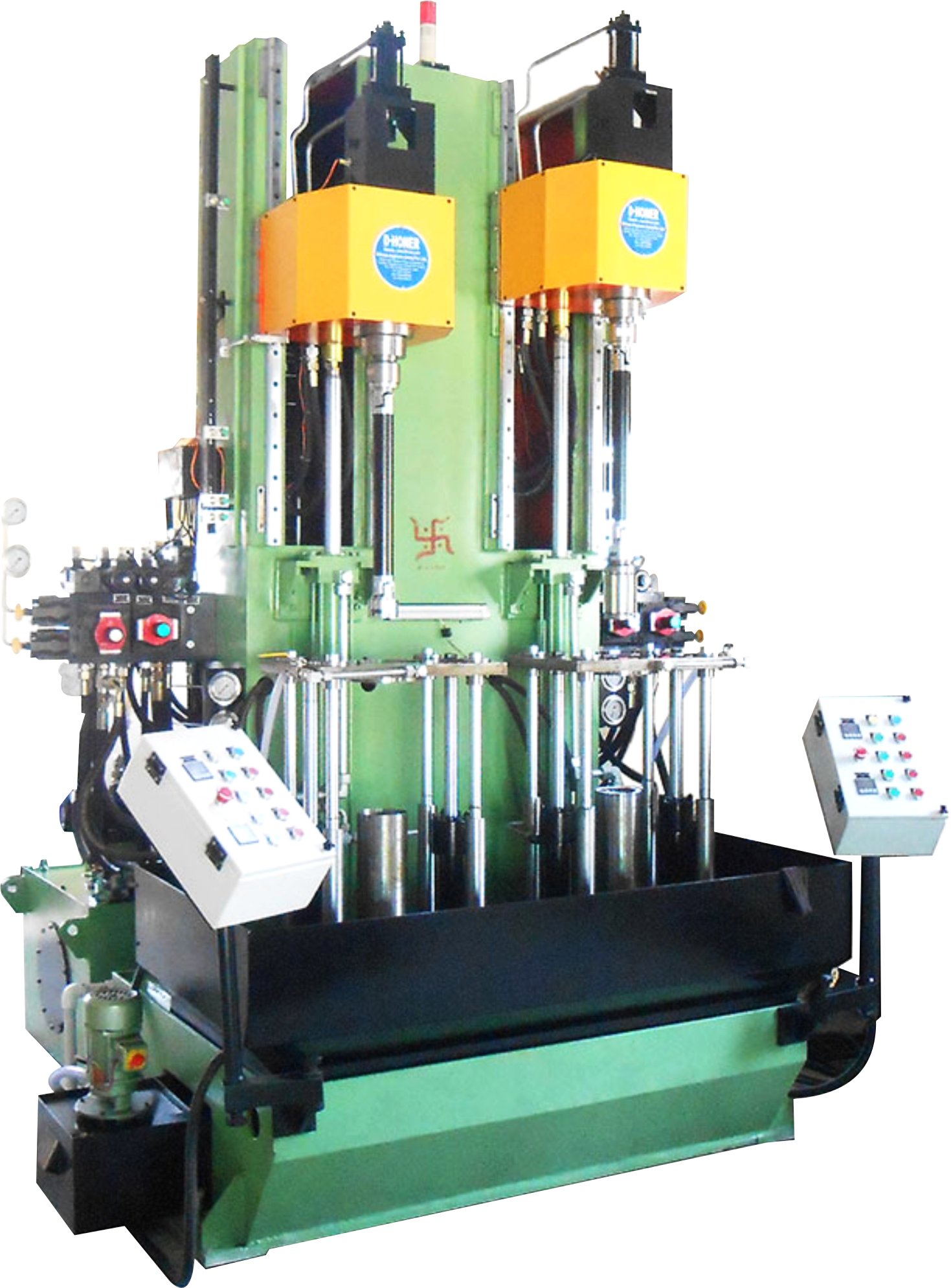

Double Spindle Linear Honing Machine
Description
D-Honer – Model : DHV – 200x1000 mm stroke is double spindle linear honing machine. Machine
specially designed for cylinder liners Machine is fully automatic by high speed reciprocation cylinders
high RPM Rotation, Hydraulic Expansion with constant pressure for better cutting with accuracy and
hydraulic clamping. Machine has two stations for best production rate per day where at 1 st station you
can do roughing and at 2 nd station finishing and it can be operated by one operator with less
manpower. So, this machine is economical for high production.

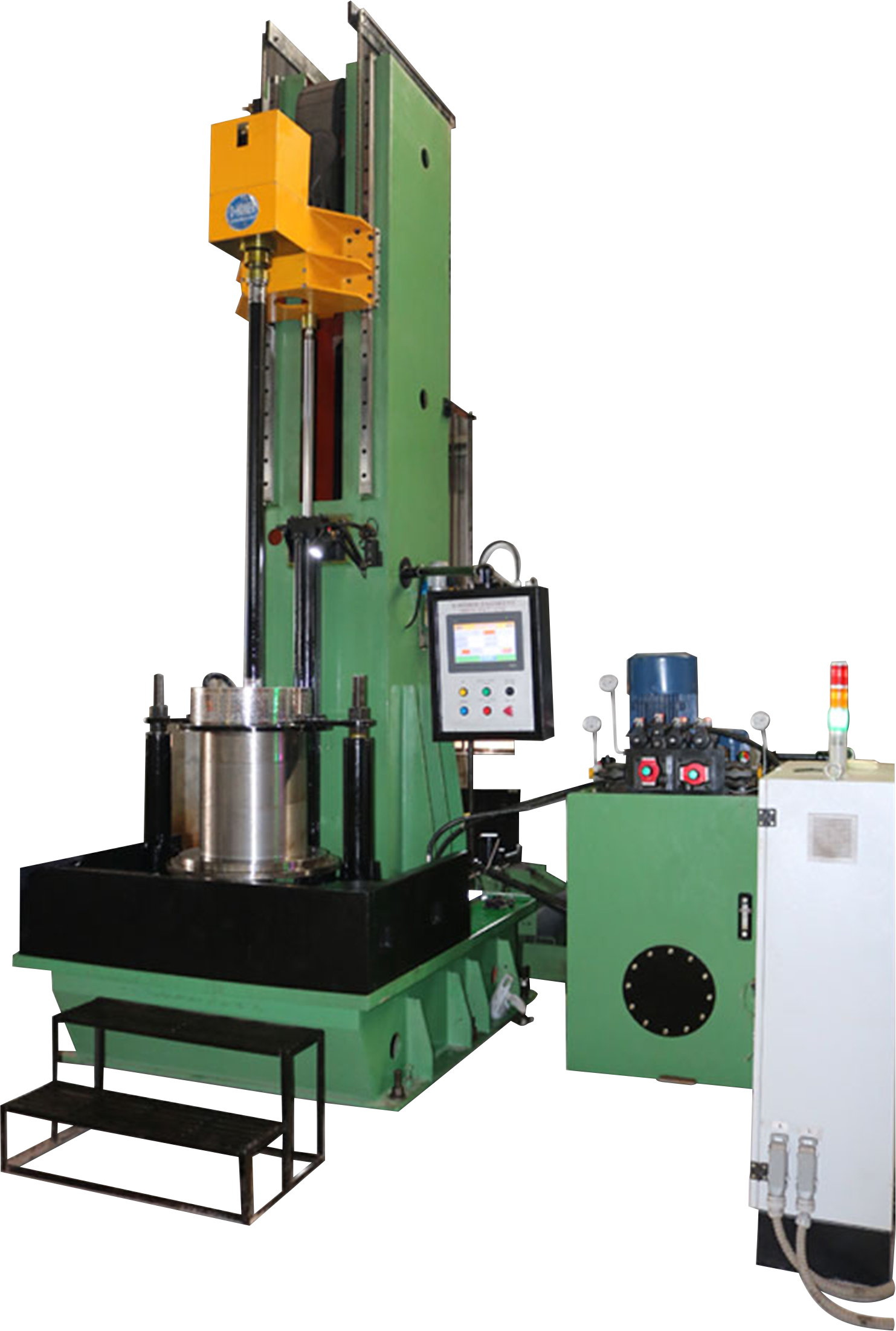

Heavy Duty Vertical Honing Machine for 1.5 mtr.
Description
D-Honer, Model : DHV-500x1500 stroke is Heavy Duty Single Spindle Honing Machine, specially
designed for bigger dia. meter job and length upto 1500 mm stroke. Machine is fully designed with
high torque cutting at high RPM. Machine is capable for high rate production with better RA Value.
Machine has heavy duty hydraulic cylinder for Reciprocation, Hydro Motor with High torque. For
Rotation & Clamping of Job is manual. Machine comes with 3 stages Filtration Unit. Machine is
designed for Stone Crusher Machines Cylinders.

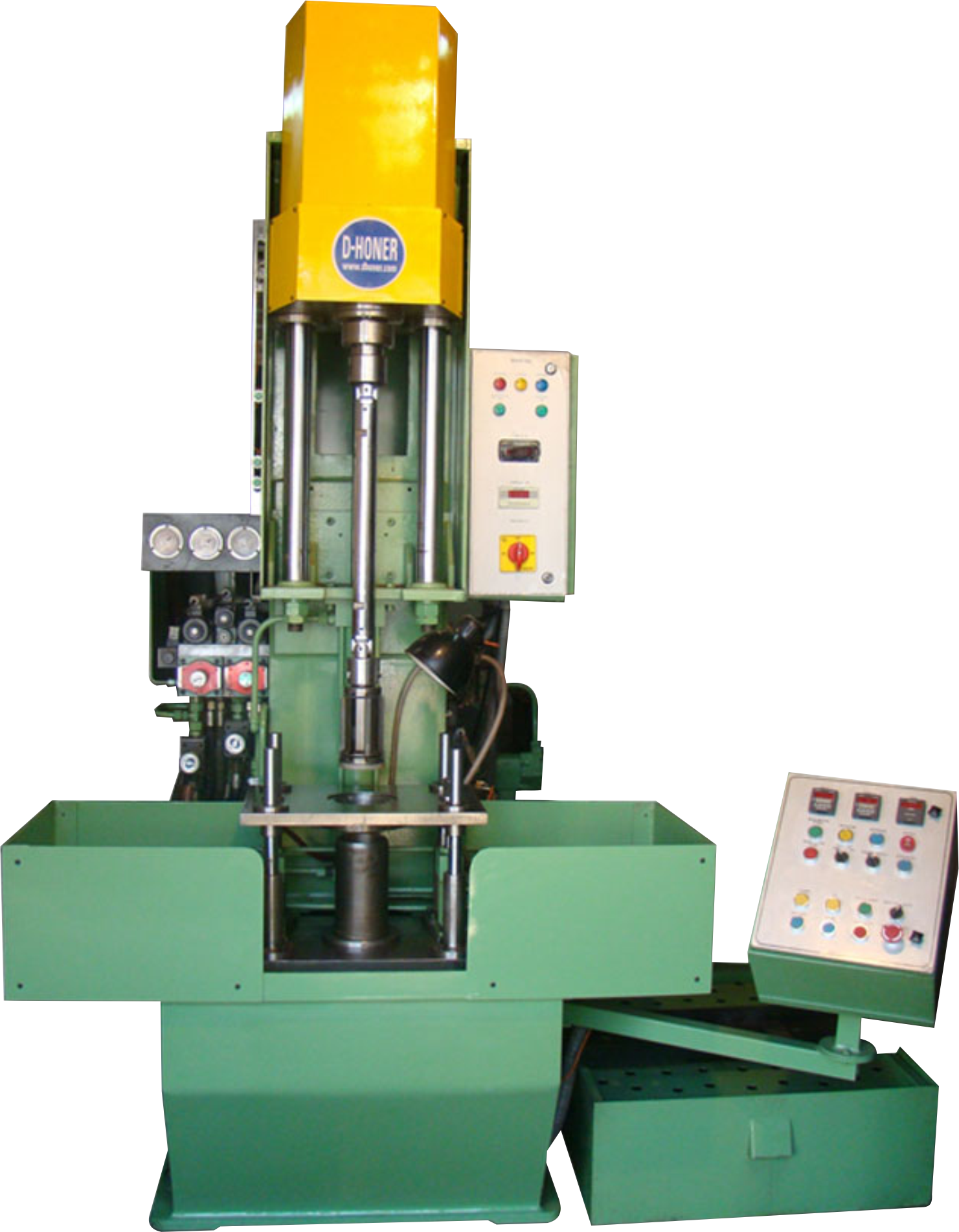

Single Spindle Vertical Honing Machine for 600 mm Stroke
Description
D-HONER Model : DHV-300x600 mm Stroke is Vertical Honing machines capable of honing heavier
components like Hydraulic / Pneumatic Cylinders Liners, Diesel Engine Connecting Rods, Hydraulic
Valves, Crank Cases, Cylinder Body for 2 & 3 Wheelers, compressors cylinders etc. on batch & mass
production basis. The range covers from 10mm 300mm in diameters and 150mm 600 mm in length. It
is operated hydraulically and Honing cycle is fully automatic. Machine is fully operated hydraulically,
like reciprocation of machine, Rotation of Spindle, Hydraulic Expansion and Job Clamping. Machine is
high precision with higher accuracy.
